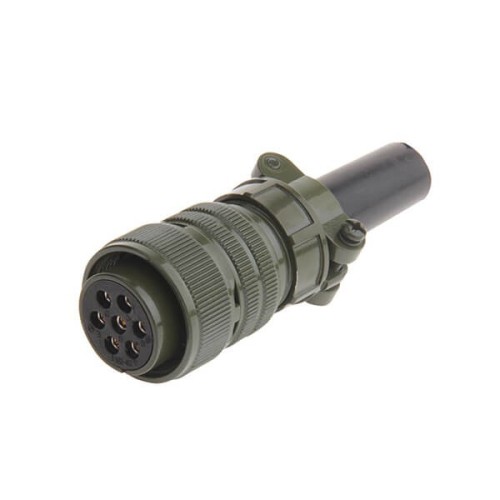

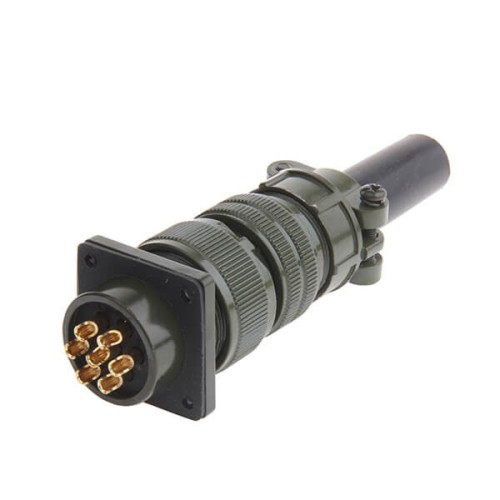

MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector

MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector
MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector
MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector
MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector
MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector

Product features:

  • MS3106A20-15S Connector, Metal Circular, Straight Plug, Class A, Size 20, 7 #16 Solder Socket Contact;
  • Meduim to heavy weight cylindrical;
  • Durable,field-proven design;
  • Environmental resistant;
  • Resilient inserts;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$24.75
Ex Tax: $24.75
  • Stock: In Stock
  • Model: JE00004548
  • Weight: 0.25kg
  • SKU: JE00004548
Products Sold: 0
Product Views: 134
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Aluminum Alloy
Terminal type Solder Type
Installation characteristics 4 Hole Flange
Connector Type Plug
Gender Male
Number of Positions 7 pin
Direction Straight
Docking method Thread Coupling
Coating Olive Drab Cadmium
Installation method Panel Mount / Cable
  • Description

MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector


MS3106A20-15S Metal Circ Str Plug Class A Size 20 7 pin12 Solder Socket Contact Connector

Electrical Characteristics

  • Shock: 490 m/s2
  • Relative humility: 95+-4% at 40℃
  • Insulation resistance: 5,000 Mega ohms minimum (at 25°C)
  • Frequency Range: 10-2000Hz/147m/s2
  • Voltage Rating: 500VAC 700VDC

Mechanical Characteristics

  • Mating Type: threaded coupling
  • Termination : Solder
  • Durability(mating) ≧ 500 cycles

Environmental Characteristics

  • Temprature Range:  -55°C ~ +125°C

Material:

PartMaterialFinish
BodyAluminum alloyOlive drab chromate
Center Contact PinBrassGold
InsulatorSynthetic Rubber-
