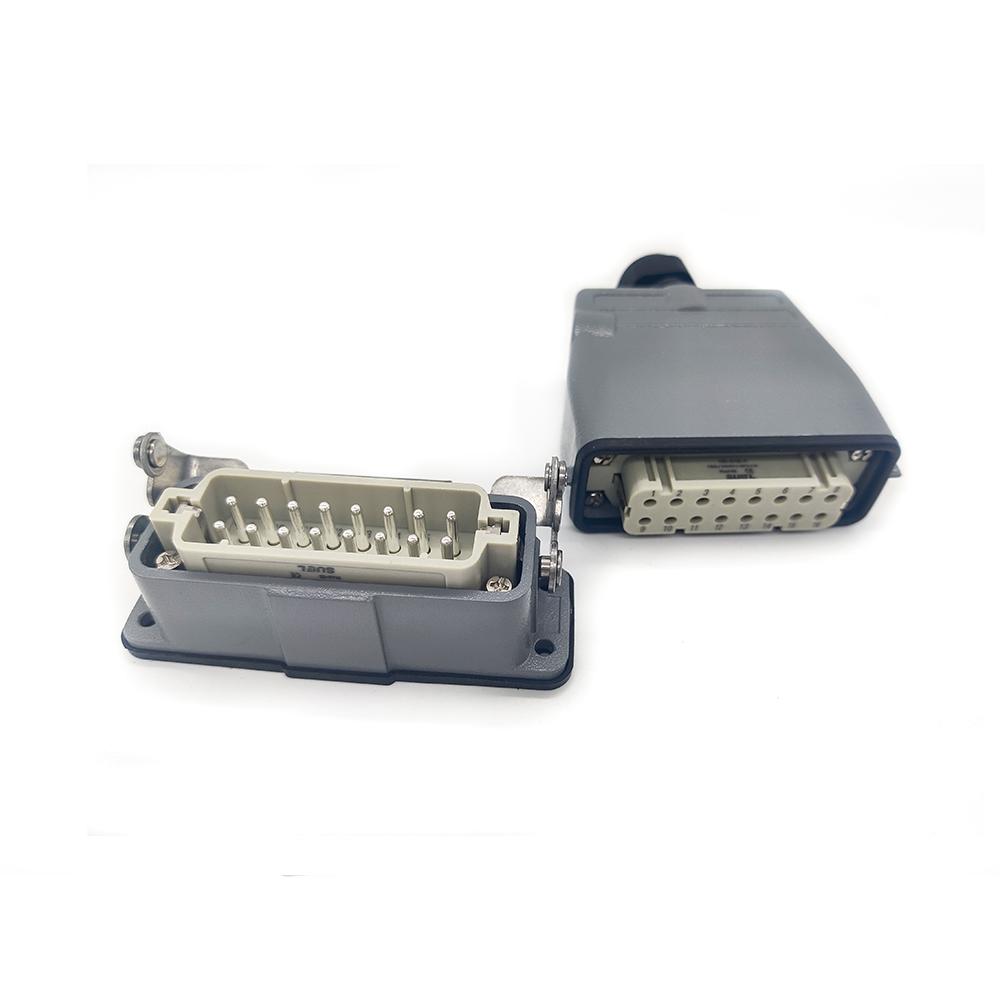

H10A Top Entry PG16 Bulkhead Mounting HA 16 Pin Screw Terminal

H24B,Top Entry,2 Bolts,PG21,H24B,Bulkhead Mounting,1 Locking lever,Metal Steel,HE,24,PC,Cage Clamp Terminal,Male，Female Pin,Copper Alloy,Silver
Always the right plug-in connection for your requirements with three different series types
Compatible connection: Housings are mounting and plug-in compatible with aluminum housings from well-known manufacturers
Flexible combination: Variable connection technologies for contact inserts and terminal adapters
Everything in one housing: Simply snap modular contact inserts for signals, data, power, and pneumatics onto the snap-in frame and mount them in the housing
Reliable interfaces: All metal housings are EMC-ready with conductive surfaces and seals

- Write a review

from

$28.21

Ex Tax: $28.21

Stock: In Stock
Model: JE00009132
Weight: 350.00g
SKU: JE00009132

Products Sold: 0

Product Views: 177

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Specifications

attribute-list
Bottom Shell Locking Material	Metal Steel
Thread Specification	PG16
Chassis Locking Method	1 Locking lever
Upper Housing Inlet/Outlet Direction	Top Entry
Chassis Mounting Method	Bulkhead Mounting
Upper Housing Locking Method	2 Bolts
Chassis Type	H10A
Upper Housing Type	H10A
Plug-in Syndrome	HA
Contact Plating	Silver
Contact Termination	Screw Terminal
Contact Type	Male，Female Pin
Insert Material	PC
Contact Material	Copper Alloy
Pins	16

Description

Applications Heavy-duty power inserts and modules can be used in a wide range of high and low voltage applications in a variety of industrial applications. Due to the nature of the environment connectors often require environmental protection ratings including IP68 and IP69K. Some of the most common are:

Construction machinery that requires electrical and signal connections
Textile machinery
Packaging and printing machinery
Tobacco machinery
Electric locomotives
Petrochemical electrical equipment.

Electrical properties

Type	Metal protective housing
Material	Cast aluminum
Color	Gray
Interlocking method	Metal elastic pressure closure
Sealing element	NBR
Temperature range	-40℃ ...+125℃
Intermediate level	V0
Protection level	(interlocked state, EN60529) IP65
Wiring method	Screw crimping
Pollution level	3
Insulation resistance	10²Ω
Tightening torque	0.25Nm
Pin material	Copper alloy
Surface treatment	Gold/Silver plating
