1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug

1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug

Features:

  • Surlok Plus, Right Angle, Plug and Socket, 8mm, Black, IP67, 200A, Busbar Lug, 25mm²-70mm²
  • Touch Proof
  • 360°Rotating Plug
  • Compactrobust Design
  • Various Termination Options
  • Three Color are available
  • Quick Lock and Press-to- Release Design
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$23.78
Ex Tax: $23.78
  • Stock: In Stock
  • Model: JE00010144
  • Weight: 124.00g
  • SKU: JE00010144
Products Sold: 0
Product Views: 374

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Shell color Black
Connector Type one pair (Plug and Socket)
Socket thread type BL
Direction Right Angle
Terminal outer diameter 8mm
Waterproof level IP67
Current 200A
  • Description

Applications:　　

  • BMS/Energy Storage
  • EV/HEV
  • Rail Mass Transit
  • Process Control/Automation
  • Heavy Equipment

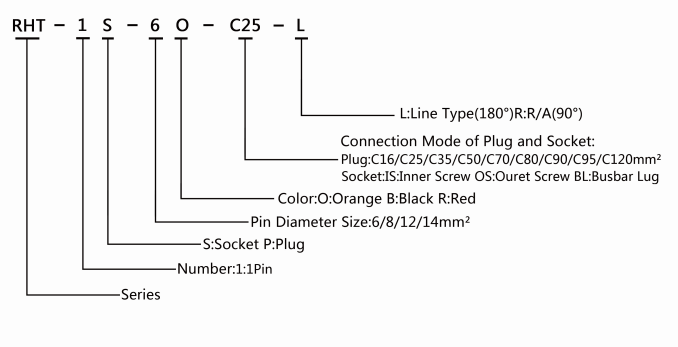

How To Order:

1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug

Packing Delivery:



1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug

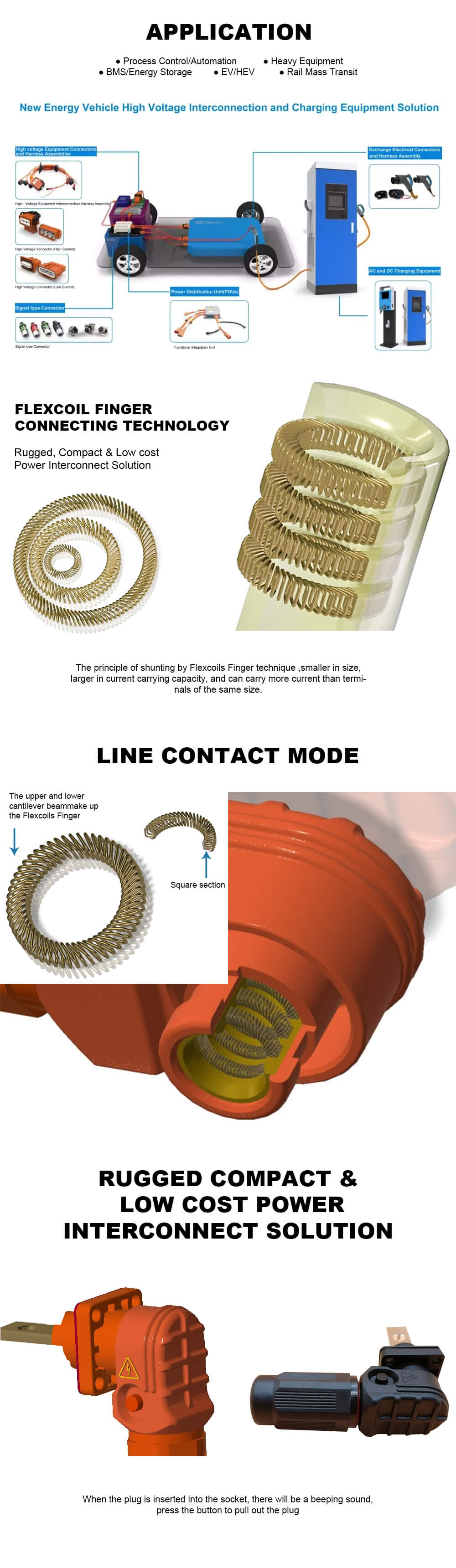

Application:
1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug

1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug1 Pin Waterproof Connector IP67 8mm Black Right Angle Plug and Socket 200A Busbar Lug


                                                                           Specifications
Rated Voltage 1000V/DC
Rated Current From 60A to 500A MAX
Withstand Voltage 2500V AC
Insulation Resistance ≥1000MΩ
Cable Range 10-120m㎡
Connection Type Terminal machine
Mating Cycles >500
Shielding 360°
IP Degree IP67 (Mated)
Operating Temperature -40℃~105℃
Flammability Rating UL94 V-0
Positions 1pin
Shell PA66
Contact Cooper alloy,Silver plating
