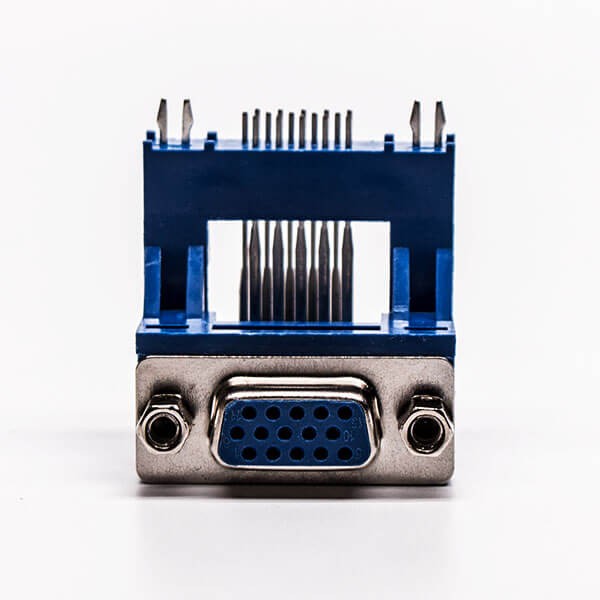

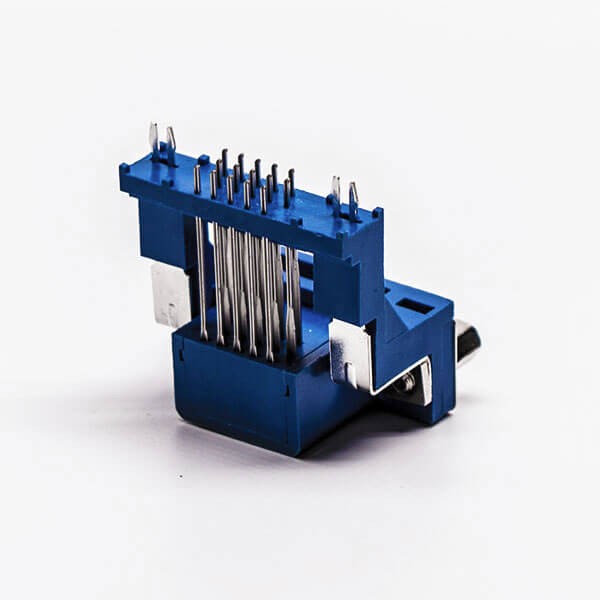

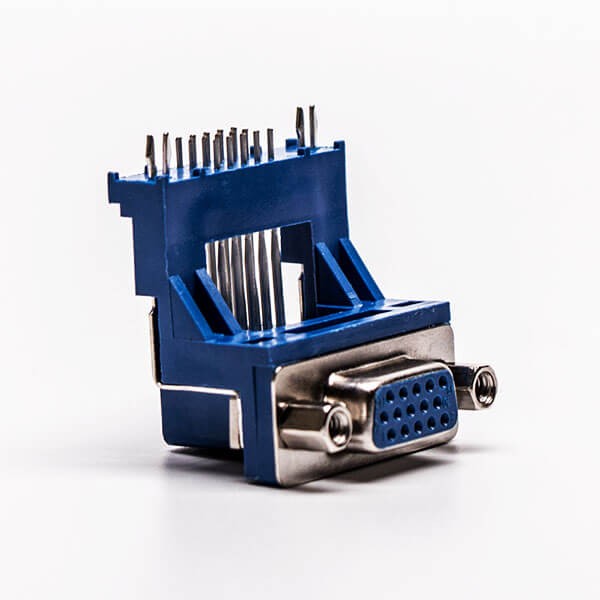

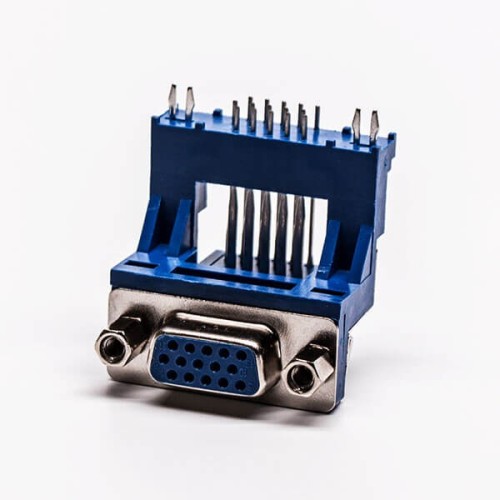

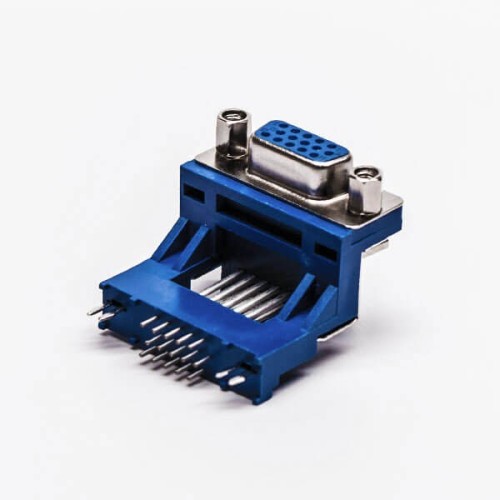

D sub Staking Blue Female Degree Elevated Though Hole for PCB Mount

Applications:

• data transmission
• Consumer Electronics
• telecommunications
• measurement
• regulation and control devices
• Military Equipment

Electrical Characteristics

• Contact resistance :10 mOhm
• Current rating signal:3 A
• Working voltage:60 V
• Dielectric with standing voltage signal:1000 V
• Insulation resistance: 5000mΩ min

Mechanical Characteristics

• Extraction force:<50 N
• Insertion force：<50 N
• Mating cycles ：50

Environmental Characteristics

• Operating Temperature：-55°C~ + 105°C

Material:
