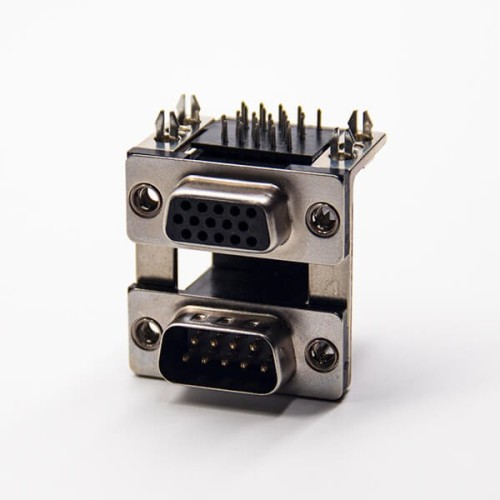

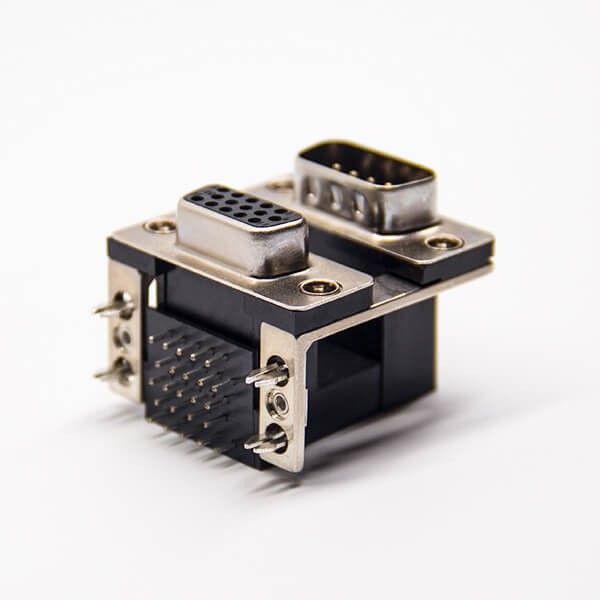

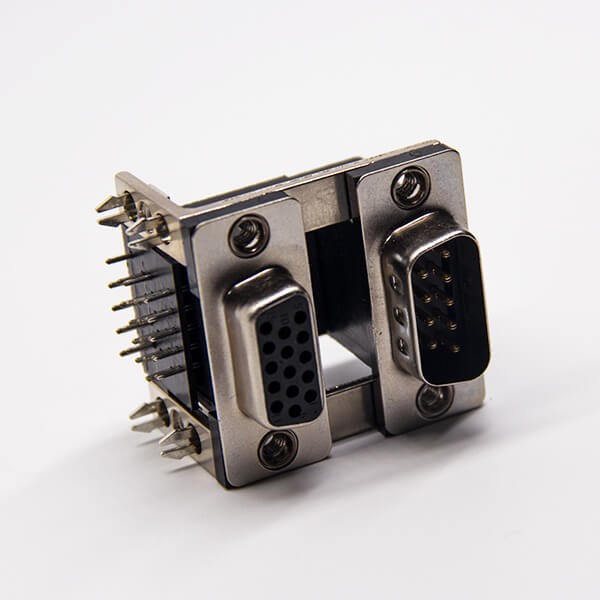

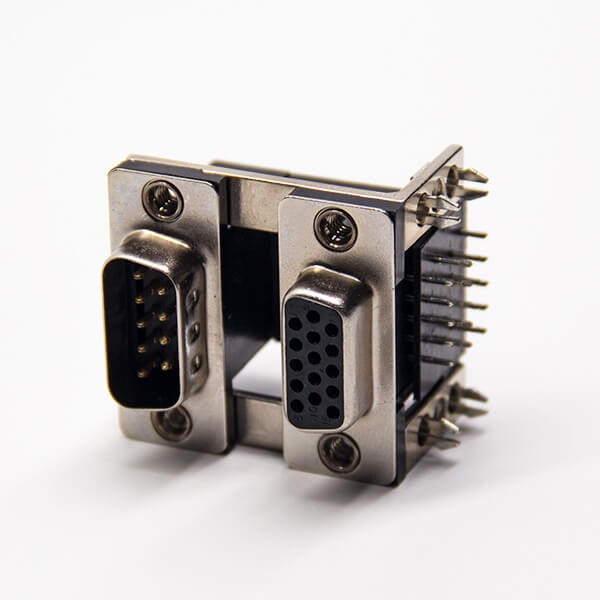

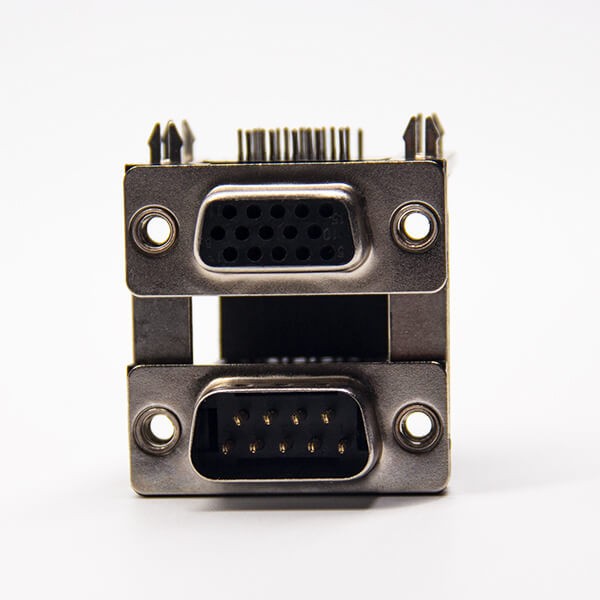

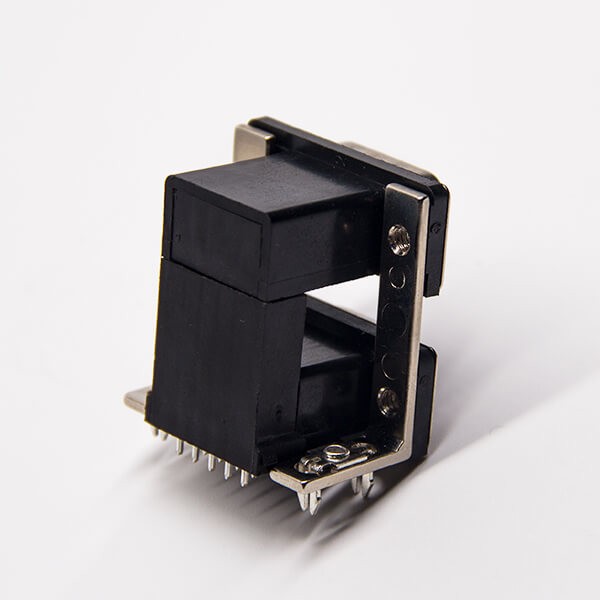

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole

Features:

  • D-sub,High Density,Right Angled/90°,Harpoon,Through Hole,PCB Mount,Stacked,Black;
  • Metal shell provides EMI/RFI shielding;
  • High density design maximizes board space;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$3.47
Ex Tax: $3.47
  • Stock: In Stock
  • Model: JE00004412
  • Weight: 21.34g
  • SKU: JE00004412
Products Sold: 0
Product Views: 138
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Gender Male
Installation method PCB Mount
  • Description

Applications:

  • data transmission
  • Consumer Electronics
  • telecommunications
  • measurement
  • regulation and control devices
  • Military Equipment

Electrical Characteristics

  • Contact resistance :10 mOhm
  • Current rating signal:3 A
  • Working voltage:60 V
  • Dielectric with standing voltage signal:1000 V
  • Insulation resistance: 5000mΩ min

Mechanical Characteristics

  • Extraction force:<50 N
  • Insertion force：<50 N
  • Mating cycles ：50

Environmental Characteristics

  • Operating Temperature：-55°C~ + 105°C

Material:

PartMaterialFinish
Body SPCC steelTin
Center Contact PinCopper alloy------
InsulatorGlass Filled Thermoplastic (UL94V-0)
Black/White

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole

D SUB Stacked Connector Right Angled 15 Pin Female and 9 Pin Male Through Hole
