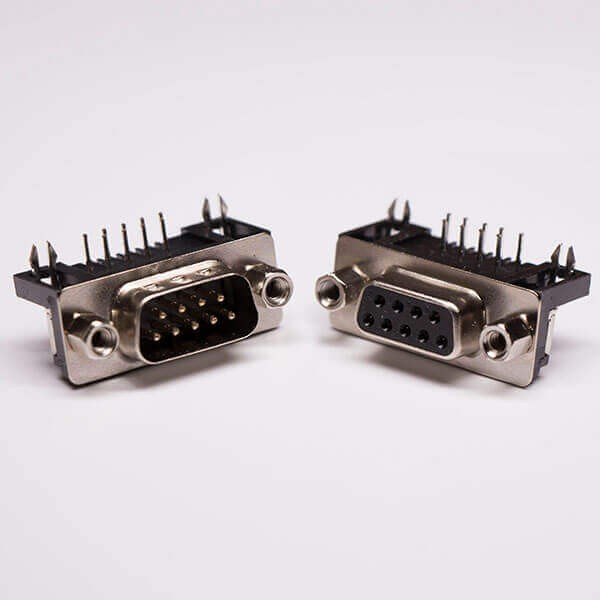

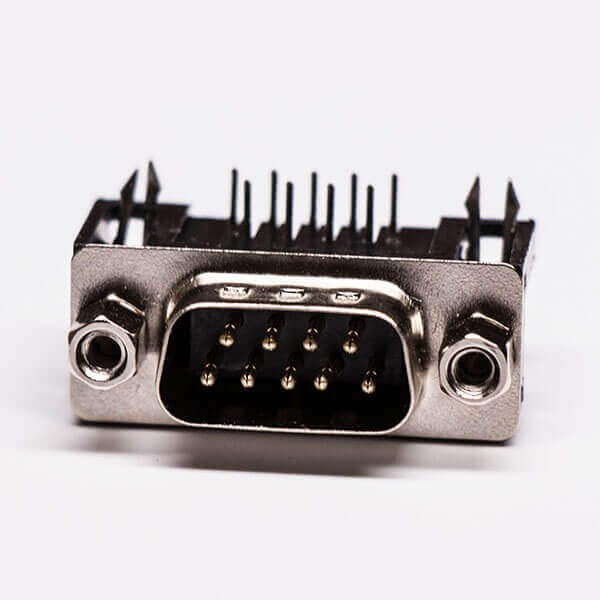

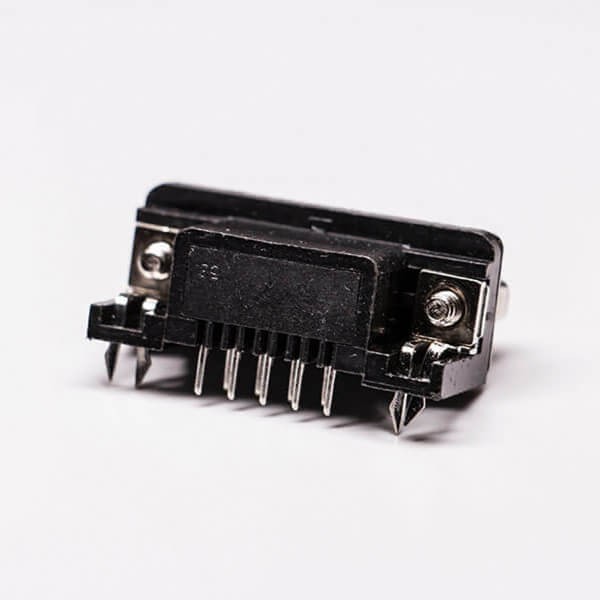

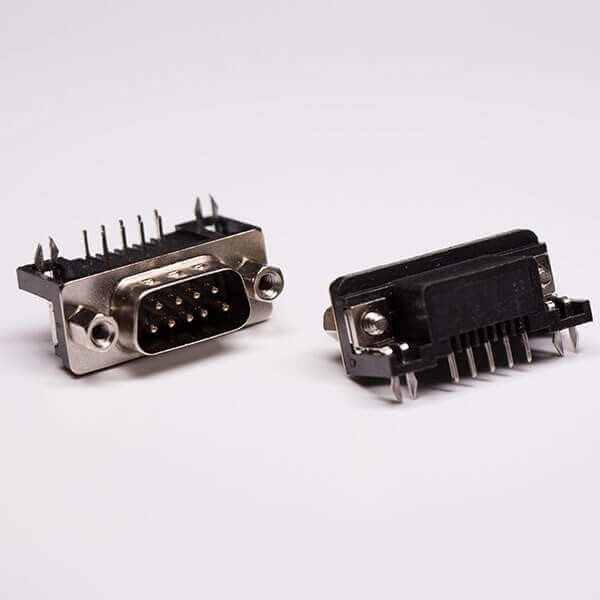

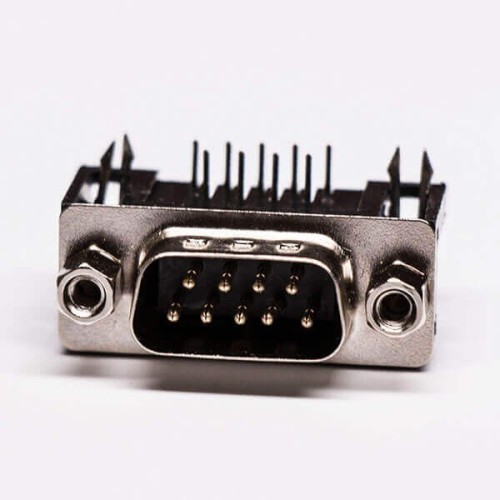

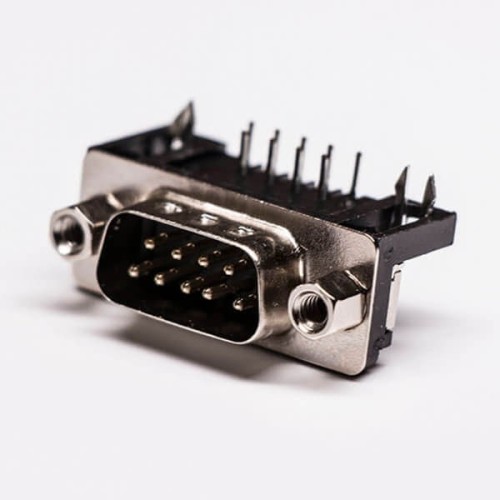

d sub 9 pin right angle Standard Male for PCB with Stamped Pin

Applications:

• Business equipment
• Electronic office systems
• Data communications
• Technology equipment
• Mobile communications
• Consumer electronics

Electrical Characteristics

• Voltage Rating :250V AC/ rms 50Hz
• Withstanding Voltage :1000V AC/ rms 50Hz for one minute
• Insulation Resistance 1000MΩ at 500V DC
• Contact Resistance 20 mΩ max.

Mechanical Characteristics

• Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
• Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

• Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:
